Corrosion resistant valves of clamp connections/flange connections


Delivery records for pharmaceutical and food plants
and high-purity chemical liquids. Suitable for countermeasures against corrosive fluids, crevice corrosion, and metal ion elution in sanitary piping.

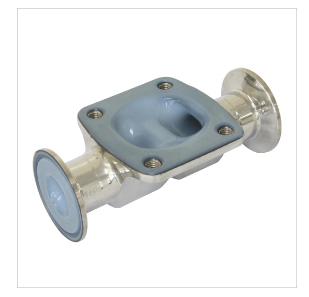

Fluorocarbon resin (ETFE) lining/clamp connection type

  1. Fluorocarbon resin (ETFE) lining is corrosion resistant to strong acids, alkalis, halogens and metal salt solutions.

  2. Superior cost performance to special alloy-based materials.

  3. No float or blister at the lining parts under the vacuum condition at high temperature.

  4. Commercially available fittings and gaskets can be used.



Fluorocarbon resin (PFA) coated/clamped connection type

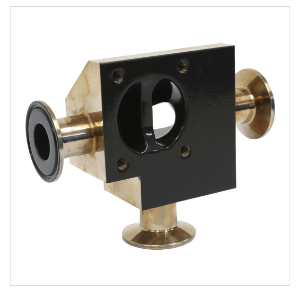

Two-way valveThree-way valve

  1. Various PFA coats are applicable. Coating materials can be selected according to users' requests, such as corrosion resistance, non-stick properties, and anti-static properties.

  2. Commercially available fittings and gaskets can be used.

  3. Wide range of body types are available such as standard 2-way valves, sampling valves, three-way valves and other dead space countermeasures products, and flange-type main bodies. Contact our sales representative for further details.


Other lining body/flange connection type

PFA liningGlass liningPorcelain lining


  1. Flange-type PFA lined body, glass lined body, porcelain lined body, etc. can also be applicable depending on the fluid conditions. It can be used in a wide range of applications, including high-purity chemicals for pharmaceuticals and foodstuffs, and multi-plants.

  2. Clean and assemble all parts in the clean room.

  3. The lining material of PFA meets FDA and Food Sanitation Act(Japan). Glass materials conform to the Food Sanitation Law.


Based on the data we have accumulated over many years, we can propose materials selection according to fluid conditions. Please contact our sales representatives for enquiry.
